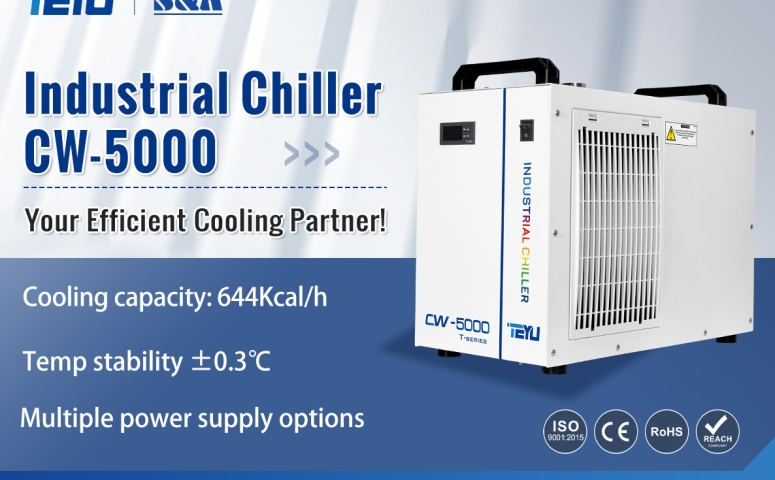

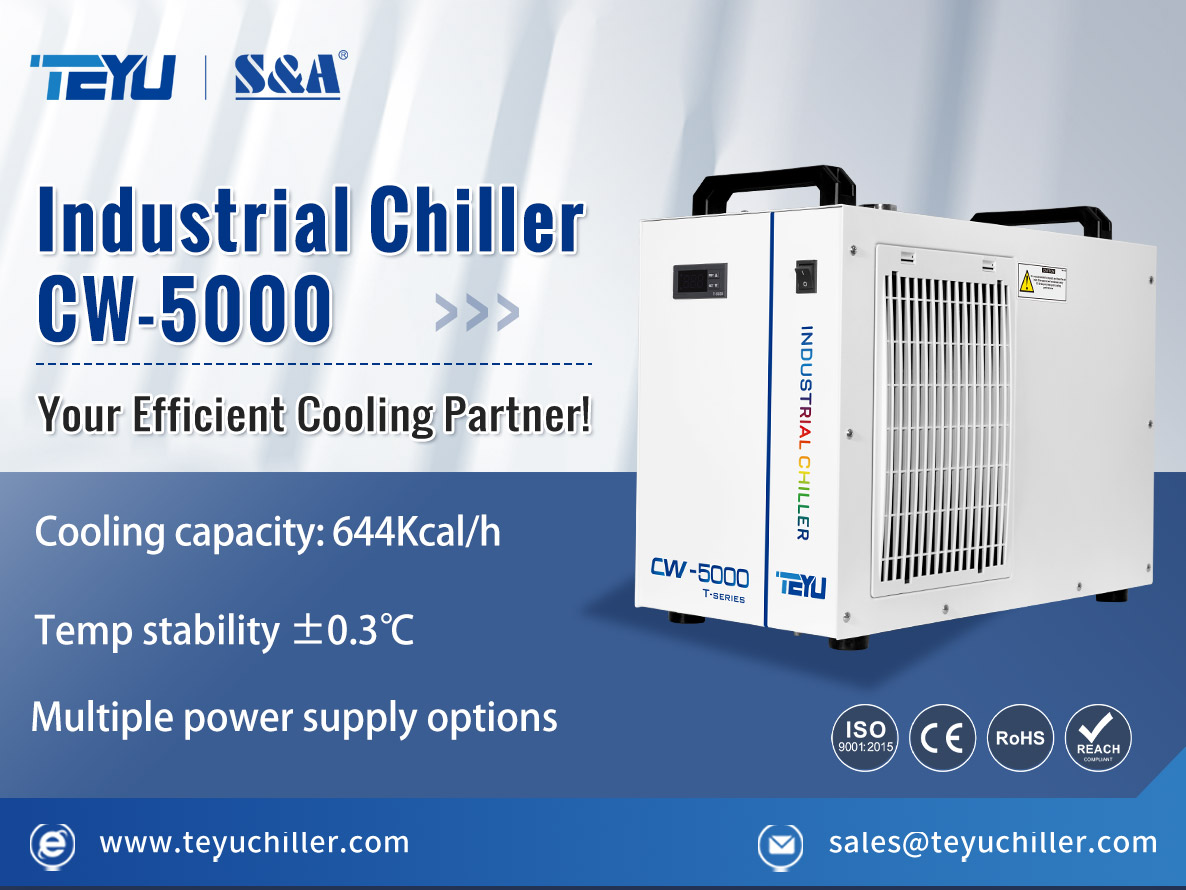

Industrial air cooled chiller CW-5000 is very popular among CO2 laser cutting machine users and it is the hot selling refrigeration type water chiller unit produced by TEYU S&A Chiller, a professional China-based chiller manufacturer with 22-year experience.
Small industrial chiller CW-5000 has small size, but its cooling performance can not be overlooked. It features cooling capacity of 750W and temperature stability of ±0.3℃. Small size and excellent cooling performance makes this chiller unit a perfect choice for CO2 laser cutting machine users who don’t have too much working space.
In addition, Industrial air cooled chiller CW-5000 is charged with environmental friendly refrigerant R-134a in order to protect the environment, which shows TEYU S&A Chiller is an environmentally responsible enterprise.
To guarantee the product quality, Small industrial chiller CW-5000 has to go through a series of strict simulated laboratory tests and the core components such as evaporator, condenser and sheet metals are independently developed by TEYU S&A Chiller.
Small industrial chiller CW-5000 offers 220/110V 50/60Hz so that it has wider access to users in different countries. Besides, it has multiple alarm functions, such as compressor time-delay protection, compressor overcurrent protection, water flow alarm and over high/low temperature alarm so that the chiller can be well protected.
For better refrigeration performance, it is suggested to use purified water or clean distilled water as the circulating water and replace it every 3 months.
Detailed introduction of industrial air cooled chiller CW-5000:
https://www.teyuchiller.com/industrial-water-chiller-cw5000-for-co2-laser-tube-p2
Specification:
Voltage:110V-240V; Frequency: 50/60Hz; Refrigerant: R-134a
Pump power: 0.03KW/0.09KW; Tank capacity:6L
Max. lift:1bar-2.5bar; Max. flow: 10L/min- 15L/min
N.W.: 18Kg; G.W.: 20Kg;
Dimension: 58*29*47 cm (L X W X H); Packing dimension: 65*36*51 cm (L X W X H)
About TEYU Brand
TEYU S&A Chiller was founded in 2002. After 22 years of developing and producing industrial water chillers, the headquarters covers an area of 30,000 square meters and has over 500 employees.
Why choose TEYU S&A Chiller
Product Advantages:
- With 11 patent certificates, ISO, CE, RoHS and REACH compliant; Conforms to air transport requirements; 2 years warranty
2.±0.1℃ high precision temperature control, stable cooling performance, support ModBus-485 communication;
- Establish logistic warehouses at USAand Europe;
Manufacturing Advantages:
- Independent R&D on sheet metal, evaporator, condenser and cores parts of chiller;
- Annual output 160,000 units, product exports rate above 60%;
- Standard bulk production, standard parts rate up to 80%;
- With excellent laboratory testing system, simulates actual working environment for chiller.
